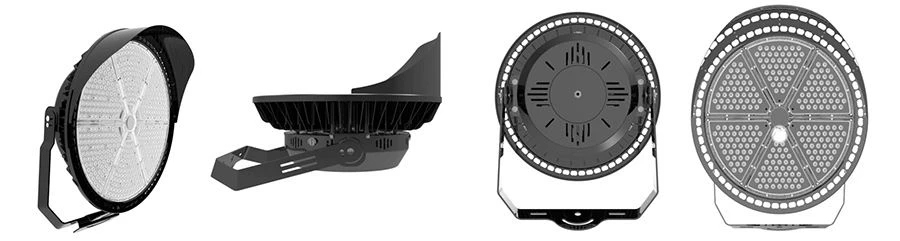

LED High Power Stadium Flood Light
Light efficiency 100lm/w to 160lm/w available
Light source with SMD3030 or SMD5050 optional
MEANWELL power supply
IP65 protection level, lightning protection 6KV and surge protection 6KV
One-piece die-casting aluminum radiator
Input voltage: 85-277V
Power: 300W to 1200W available
Beam angle: 10°, 25° and 60° optional
Over 75% energy saving
5 years warranty
Description
The LED High Power Stadium Flood Light, which is commonly used to illuminate large areas for sporting events or other large outdoor events and activities, such as concerts. This type of LED stadium high mast light is with features of energy saving, low maintenance and good lighting effect etc., can be used individually or combined with multiple lamps, really very flexible in application. It is the lighting solution to provide the cleanest, and most efficient LED lighting possible.
Advantages of This LED High Power Stadium Flood Light
a, World famous brand LED light source, high light efficiency, with light attenuation less than 3% within three years.
b, High power factor and high efficiency outdoor waterproof power supply, with key components of world brands to ensure the service life of the lamp
c, Die-casting aluminum radiator from a complete mold, material with ADC12 aluminum with uniform heat dissipation performance.
d, Surface handled with spraying technology to ensure that the lamp does not corrode or rust in harsh environments such as humidity and high temperature; IP65, IK08, anti-typhoon class 17.
e, High thermal conductivity aluminum PCB with back plate coated with thermal conductive silicone grease, faster thermal conductivity and more stable performance.
f, This type of stadium led flood light is with a variety of light distribution angle options, it can meet the application requirements of different occasions.
Data Sheet
Specification | LED High Power Stadium Flood Light | ||
| Product Model | GVC-GGD-300W-CW | GVC-GGD-600W-CW | GVC-GGD-1200W-CW |
Wattage | 300W | 600W | 1200 |
Lighting Source | SMD3030/SMD 5050 | SMD3030/SMD 5050 | SMD3030/SMD 5050 |
Input Voltage | AC85-277V | ||
Power supply | Isolated LED driver | ||
Power factor | >0.9 | ||
harmonic wave | ≤25% | ||
CRI | >80 | ||
Beam Angle (Degree) | 10°, 25° and 60° optional | ||
Light efficiency | 100lm/w-160lm/w available | ||
Color Temperature (K) | 3000K;; 4000k ;;5000k;; ; 6500k | ||
IP grade | IP65 | ||
Working temperature | -30℃ to +60℃ | ||
Storage temperature | -30℃ to +60℃ | ||
Operating humidity | 10% - 80% | ||
Warranty | 5 years | ||

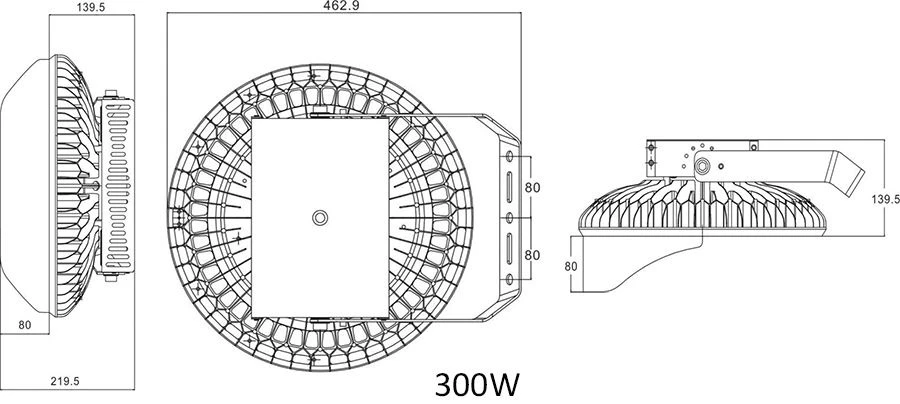

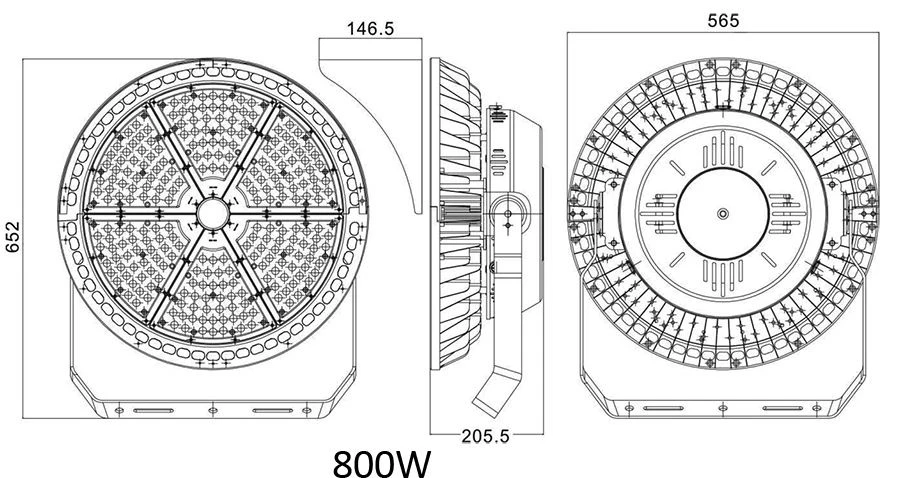

Dimensions of This LED High Power Stadium Flood Light
Installation Show of LED High Power Stadium Flood Light
Application Examples:
FAQ
Q1: How to deal with the faulty?
A: We can say that our products are produced in strict quality control system and the defective rate will be less than 0.2%. During the guarantee period, we will send new lights with new order for small quantity. For defective batch products (except for man-made damage), we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q2: What is your payment term?
A: 100% prepayment for order under 1000USD; 30% prepayment, 70% before shipment for orders over 1000USD.
Q3: How does your factory do regarding the quality control?
A:Light Victor is a professional manufacturer and exporter, we fully understand that quality is of vital importance to our sustainable development. We have the strict quality control, advanced machines and strong R&D team to ensure high quality products; We own the advanced &modern production equipments including the high speed SMT machine, auto wave welding machine, high-precision integrating sphere, IES testing machine and auto aging line, etc; Light Victor is able to make the products with high quality, high efficiency and long lifespan.
Quality control process:
Strict Quality throughout the whole production and delivery: Income Material (IQC) – Processing (IPQC) – Composite (IPQC) – Packing (IPQC) – Stock (OQC) – Loading ( FQC) – QA.
Q4:Do you offer guarantee for the products?
A:Yes, we usually offer 5 years warranty for our LED tube light products, and 5 years availale if request.
Q5: How you can control your quality?
A:We have strict QC processes:
● IQC: sampling inspection of incoming material
● First article inspection
● IPQC: to solve quality problems during daily production and in-process audit.
● 100% aging test before packaging
● OQC: sampling inspection of finished products about the packaging, labeling, product outer appearance and performance.
